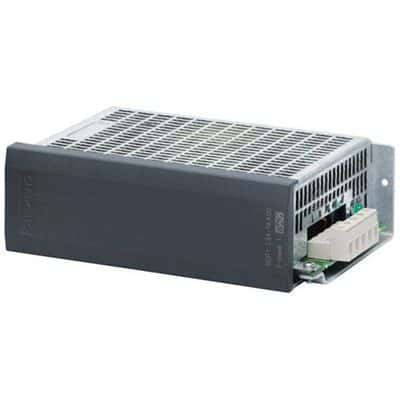

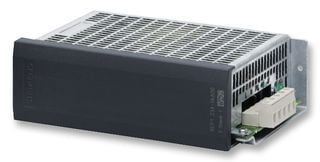

The 24V 2.5A panel mount power supply has a maximum output power of 60W and a maximum operating temperature of 70°C. It operates within a voltage range of 187V to 264V AC and has a nominal output voltage of 24V. The power supply is mounted on a panel and has a weight of 0.8kg. It is not Reach SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 6EP12321AA00 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 2.5A |
| Depth | 170mm |
| Efficiency | 84% |
| Length | 110mm |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 187V |
| Max Input Voltage | 264V |
| Min Input Voltage | 187V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 2.5A |
| Max Output Power | 60W |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Mount | Panel |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Reach SVHC Compliant | No |
| Voltage - Output 1 | 24V |
| Weight | 0.8kg |
| Width | 52mm |
| RoHS | Compliant |
Download the complete datasheet for Siemens 6EP12321AA00 to view detailed technical specifications.
