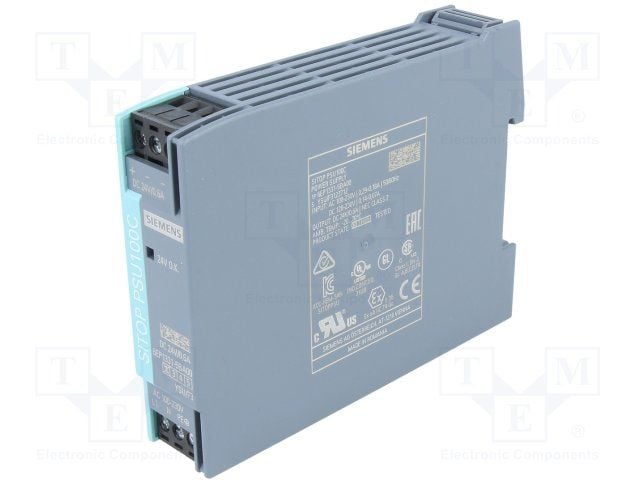

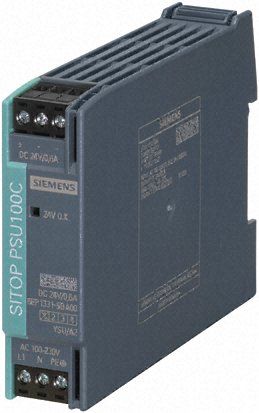

DIN rail mount AC/DC power supply, delivering 14W maximum output power with a fixed 24VDC output voltage and 600mA maximum output current. Features a wide AC input voltage range of 85-264VAC and DC input range of 110-300VDC, with an efficiency of 82%. Operates across an ambient temperature range of -20°C to 70°C, and measures 22.5mm in width, 80mm in depth, and 100mm in length.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 6EP1331-5BA00 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Siemens 6EP1331-5BA00 technical specifications.
| Package/Case | 600 |
| Current - Output 1 | 600mA |
| Depth | 80mm |
| Efficiency | 82% |
| Height | 180mm |
| Length | 100mm |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage (DC) | 300V |
| Min Input Voltage (DC) | 110V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 600mA |
| Max Output Power | 14W |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Mount | DIN Rail |
| Nominal Input Voltage (AC) | 240V |
| Number of Outputs | 1 |
| Output Current | 600mA |
| Output Power | 14W |
| Output Voltage | 24V |
| Reach SVHC Compliant | No |
| Voltage - Output 1 | 24V |
| DC Rated Voltage | 24V |
| Weight | 0.12kg |
| Width | 22.5mm |
| RoHS | Compliant |
