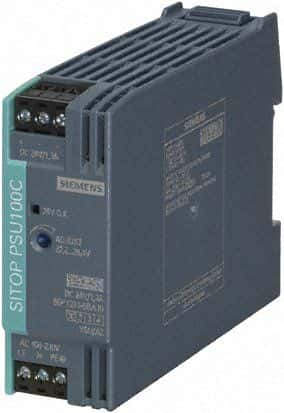

DIN rail mountable AC/DC power supply, delivering 30W maximum output power with a fixed 24VDC output voltage and 1.3A maximum output current. Features a wide AC input voltage range of 85-264VAC and DC input range of 110-300VDC. Operates efficiently at 86% and is designed for industrial automation and control applications. Compact dimensions of 100mm length, 30mm width, and 80mm height, with an operating temperature range of -20°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 6EP1331-5BA10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 1.3A |
| Depth | 80mm |
| Efficiency | 86% |
| Height | 80mm |
| Length | 100mm |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage (DC) | 300V |
| Min Input Voltage (DC) | 110V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 1.3A |
| Max Output Power | 30W |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Mount | DIN Rail |
| Nominal Input Voltage (AC) | 240V |
| Number of Outputs | 1 |
| Output Current | 1.3A |
| Output Power | 31W |
| Reach SVHC Compliant | No |
| Voltage - Output 1 | 24V |
| DC Rated Voltage | 24V |
| Weight | 0.17kg |
| Width | 30mm |
| RoHS | Not Compliant |
