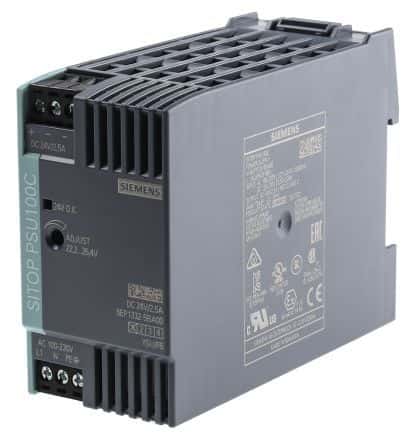

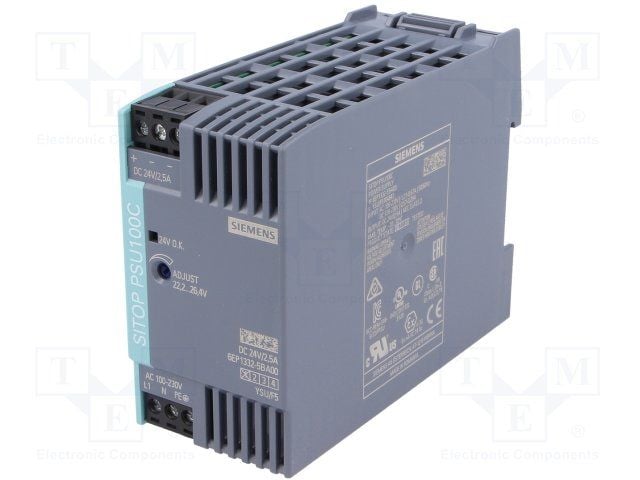

Fixed AC/DC DIN Rail Power Supply, delivering 60W output power and 2.5A maximum output current at 24VDC. Features a wide input voltage range of 85-264VAC and 110-300VDC, with 87% efficiency. Operates across a temperature range of -20°C to 70°C. Compact design with dimensions of 100mm length, 45mm width, and 80mm height, weighing 0.22kg.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 6EP1332-5BA00 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 2.5A |
| Depth | 80mm |
| Efficiency | 87% |
| Height | 80mm |
| Length | 100mm |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage (DC) | 300V |
| Min Input Voltage (DC) | 110V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 2.5A |
| Max Output Power | 60W |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Mount | DIN Rail |
| Nominal Input Voltage (AC) | 240V |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Output Power | 60W |
| Reach SVHC Compliant | No |
| Voltage - Output 1 | 24V |
| DC Rated Voltage | 24V |
| Weight | 0.22kg |
| Width | 45mm |
| RoHS | Not Compliant |
