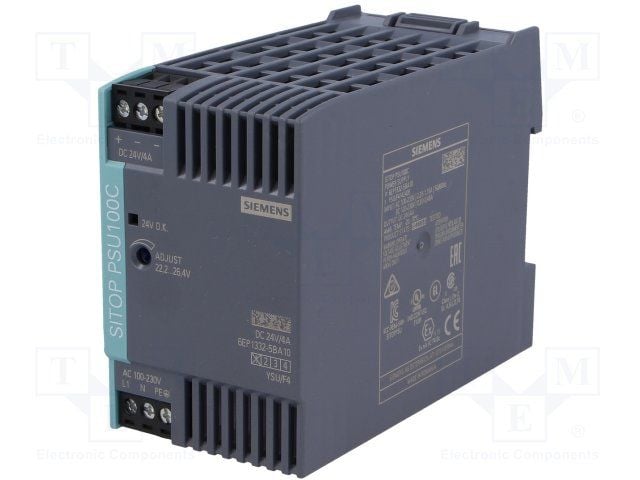

DIN rail mountable AC/DC power supply, delivering 96W maximum output power and 4A maximum output current at a fixed 24VDC. Features wide AC input voltage range from 85VAC to 264VAC and DC input from 110VDC to 300VDC. Operates efficiently at 88% with a broad temperature range of -20°C to 70°C. Compact dimensions of 100mm length, 52.5mm width, and 80mm height, weighing 0.32kg.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 6EP1332-5BA10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 4A |
| Depth | 80mm |
| Efficiency | 88% |
| Height | 80mm |
| Length | 100mm |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage (DC) | 300V |
| Min Input Voltage (DC) | 110V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 4A |
| Max Output Power | 96W |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Mount | DIN Rail |
| Nominal Input Voltage (AC) | 240V |
| Number of Outputs | 1 |
| Output Current | 4A |
| Output Power | 96W |
| Reach SVHC Compliant | No |
| Voltage - Output 1 | 24V |
| DC Rated Voltage | 24V |
| Weight | 0.32kg |
| Width | 52.5mm |
| RoHS | Not Compliant |
