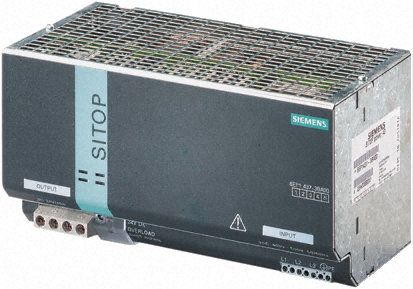

The 6EP1437-3BA00 is a single-output power supply from Siemens with a maximum output power of 960W and an output voltage of 24V. It can handle a maximum output current of 40A and has a high efficiency of 90%. The power supply is designed for DIN rail mounting and has a compact size of 240mm in length, 125mm in width, and 125mm in depth. It operates within a temperature range of 0°C to 70°C and is not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 6EP1437-3BA00 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 40A |
| Depth | 125mm |
| Efficiency | 90% |
| Length | 240mm |
| Max Input Voltage (AC) | 550V |
| Min Input Voltage (AC) | 320V |
| Max Input Voltage | 550V |
| Min Input Voltage | 320V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Power | 960W |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Mount | DIN Rail |
| Number of Outputs | 1 |
| Output Current | 40A |
| Reach SVHC Compliant | No |
| Voltage - Output 1 | 24V |
| Weight | 3.2kg |
| Width | 125mm |
| RoHS | Not Compliant |
Download the complete datasheet for Siemens 6EP1437-3BA00 to view detailed technical specifications.
