The 6ES7222-1BH32-0XB0 is a digital output module from Siemens, part of the SIMATIC S7-1200 series. It has a package type of module and measures 100mm in length, 45mm in width, and 75mm in depth. The module is designed for industrial use and has a maximum operating temperature of 60°C and a minimum operating temperature of -20°C. It is rated for IP20 and has 16 digital outputs with a maximum current of 500mA. The module is not SVHC compliant.
PackageModule
Quick Jump:
Technical Specifications
Siemens 6ES7222-1BH32-0XB0 technical specifications.
General
| Package/Case | Module |
| Depth | 75mm |
| Input Type | DIGITAL |
| Length | 100mm |
| Manufacturer Series | SM 1222 |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Number of Outputs | 16 |
| Output Current | 500mA |
| Output Type | Digital |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| Series | SIMATIC S7-1200 |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Siemens 6ES7222-1BH32-0XB0 Datasheet
Download the complete datasheet for Siemens 6ES7222-1BH32-0XB0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

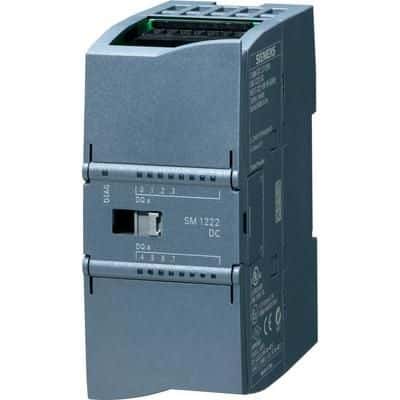

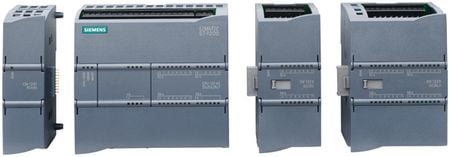

Product Images
