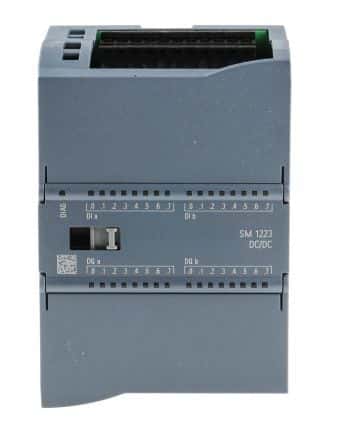

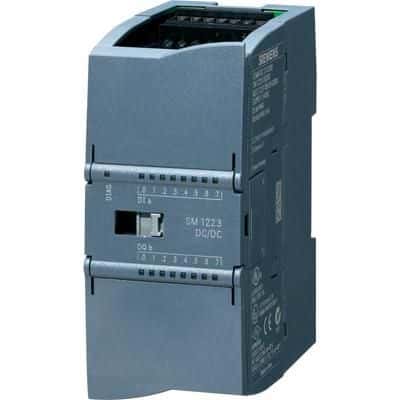

The 6ES7223-1BL32-0XB0 is a 32-point digital I/O module with 500mA output current, designed for use in industrial automation and control applications. It features a module package with dimensions of 100mm in length, 75mm in depth, and 70mm in width. The module operates within a temperature range of -20°C to 60°C and is rated for IP20 protection. It is part of the SIMATIC S7-1200 series and is not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 6ES7223-1BL32-0XB0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Siemens 6ES7223-1BL32-0XB0 technical specifications.
| Package/Case | Module |
| Depth | 75mm |
| Input Type | DIGITAL |
| Length | 100mm |
| Manufacturer Series | SM 1223 |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Number of I/Os | 32 |
| Number of Inputs | 16 |
| Number of Outputs | 16 |
| Output Current | 500mA |
| Output Type | Digital |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| Series | SIMATIC S7-1200 |
| Width | 70mm |
| RoHS | Compliant |
