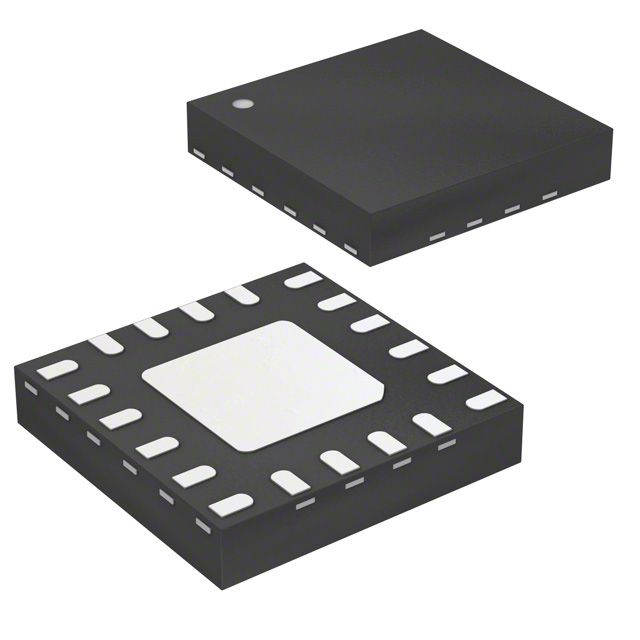

The SI3400-E1-GM is a single-channel DC-DC converter with a maximum operating frequency of 350kHz. It can handle a maximum input voltage of 57V and a minimum input voltage of 2.8V. The device operates within a temperature range of -40°C to 85°C and has a maximum power dissipation of 15W. It draws an operating supply current of 2mA and can supply a maximum output current of 2A. The converter is available in a QFN package quantity of 60, packaged in rail/Tube.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs SI3400-E1-GM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Frequency | 350kHz |
| Max Input Voltage | 57V |
| Min Input Voltage | 2.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 15W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.8V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 2mA |
| Output Current | 2A |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Supply Current | 2mA |
| Termination | SMD/SMT |
| Weight | 0.002173oz |
| RoHS | Compliant |
