General purpose, unidirectional gate driver with 4A maximum output current. Features 1.2A high-level and 500mA low-level output current, 50ns propagation delay, and 60ns turn-on delay. Operates from a 5V to 30V supply voltage with 3.75kV isolation voltage. Packaged in a DIP with dimensions of 9.9mm length, 6.6mm width, and 3.43mm height. RoHS compliant and approved by CSA, VDE, UR, and CQC.
PackageDIP
Current2mA
Quick Jump:
Technical Specifications
Silicon Labs Si8261BBC-C-IP technical specifications.
General
Approvals
CSA, VDE, UR, CQC
Package/Case
DIP
Channel Type
Unidirectional
Height
3.43mm
High Level Output Current
1.2A
Isolated Power
No
Isolation Voltage
3.75kV
Length
9.9mm
Low Level Output Current
500mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Power Dissipation
300mW
Max Supply Voltage
30V
Min Supply Voltage
5V
Number of Channels
1
Number of Drivers
1
Number of Outputs
2
Package Quantity
96
Packaging
Rail/Tube
Propagation Delay
50ns
Pulse Width Distortion (PWD)
10ns
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Si8261BBC
Supply Current
2mA
Turn-On Delay Time
60ns
Type
General Purpose
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs Si8261BBC-C-IP Datasheet
Download the complete datasheet for Silicon Labs Si8261BBC-C-IP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

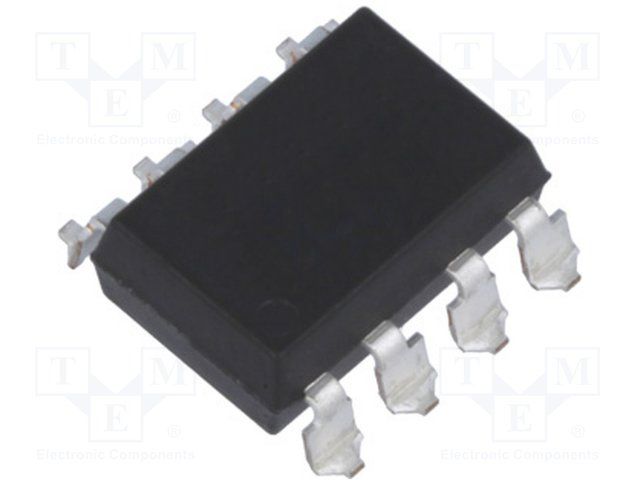

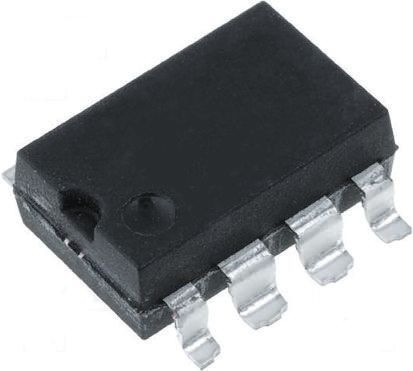

Product Images
