Simpson Electric
37027
100A Panel Mount Transformer, 100:5 Turns Ratio, 3.22inch Depth, 181.11mm Width
The 37027 transformer from Simpson Electric is a panel mount component with a 100:5 turns ratio. It measures 3.22inch in depth and 181.11mm in width. The transformer has a maximum input current of 100A. It is designed for use in industrial automation and control applications, specifically in panel meters.
Package100
MountingPanel
Quick Jump:
Technical Specifications
Simpson Electric 37027 technical specifications.
General
| Package/Case | 100 |
| Depth | 3.22inch |
| Height | 81.03mm |
| Input Current | 100A |
| Length | 56.39mm |
| Mount | Panel |
| Series | GIMA |
| Termination | Screw |
| Turns Ratio | 100:5 |
| Width | 181.11mm |
| Wire/Cable Diameter | 0.97inch |
Compliance
| RoHS | Compliant |
Datasheet
Simpson Electric 37027 Datasheet
Download the complete datasheet for Simpson Electric 37027 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

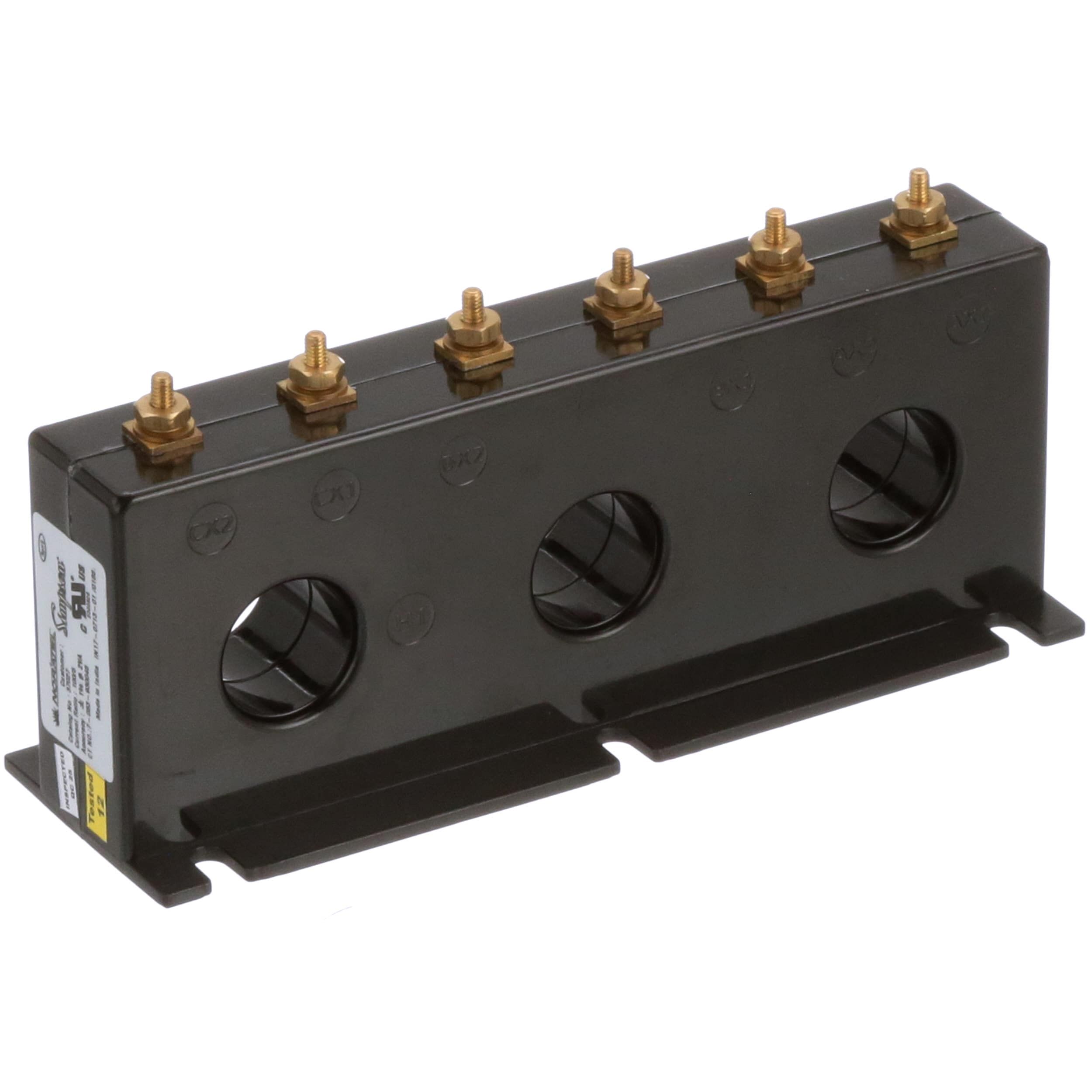

Product Images
