Technical Specifications
SMC D-M9PSAPC technical specifications.
General
| Package/Case | SMC |
| Manufacturer Series | D-M9 |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Ratings | IP67 |
| Termination | Plug |
| Switch Action | PNP (3-Wire) |
| Electrical Connection | Circular Connector |
| Applicable Load | IC Circuit, PLC, Relay |
| Maximum Load Current | 40 mA |
| Fluid Comp | Air |
| Overall Width | 4 mm |
| Overall Height | 4.6 mm |
| Overall Length | 22 mm |
| Mounting Type | Direct |
| Weight | 12 g, 0.95 |
Compliance
| RoHS | Compliant |
Datasheet
SMC D-M9PSAPC Datasheet
Download the complete datasheet for SMC D-M9PSAPC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

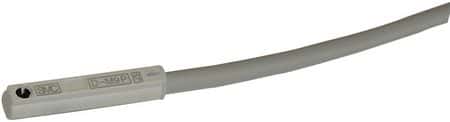

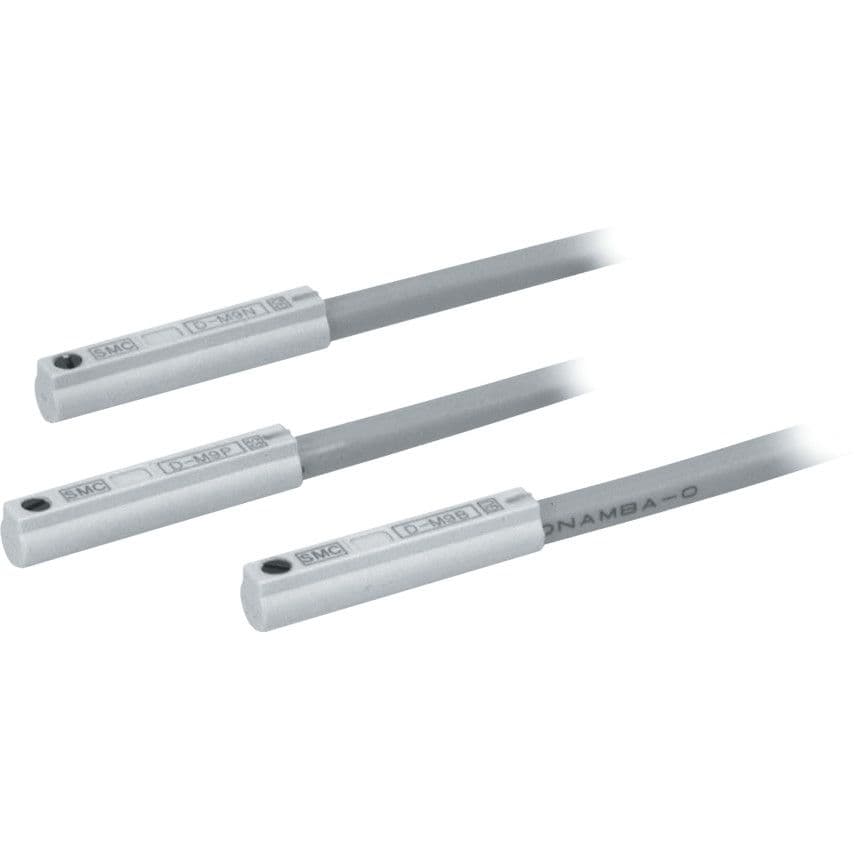

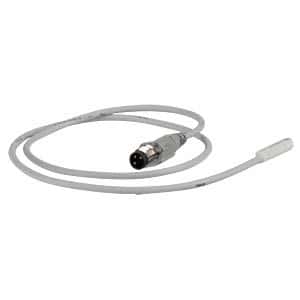

Product Images
