Technical Specifications

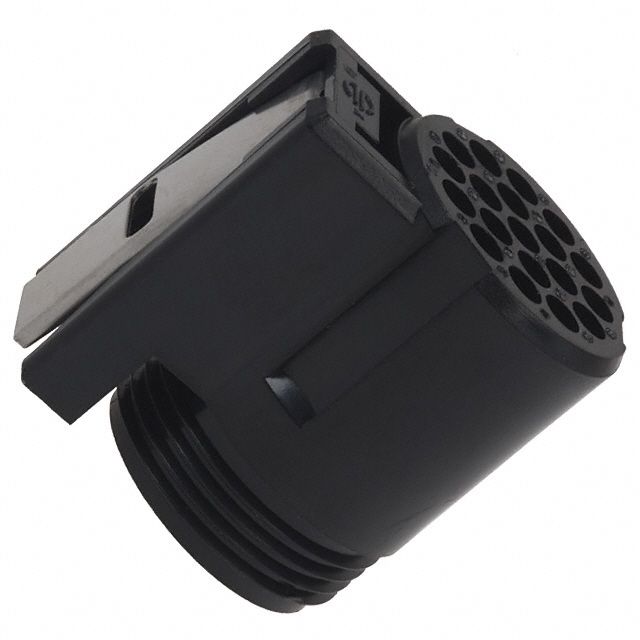

Souriau MBG19P1 technical specifications.
General
Approvals
UL, CSA
Color
Black
Contact Gender
Male
Contact Type
CRIMP
Depth
22.83mm
Flammability Rating
UL94 V-0
Gender
Male
Lead Free
Lead Free
Length
30.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Contacts
19
Number of Positions
19
Orientation
Straight
Package Quantity
25
Packaging
Bulk
RoHS Compliant
Yes
Series
MBG
Shell Material
Plastic
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Souriau MBG19P1 Datasheet
Download the complete datasheet for Souriau MBG19P1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
