The UTS Series connector is a male pin crimp connector with a current rating of 13A. It is made of copper alloy material with a tin plating and has a maximum wire gauge of 18AWG and a minimum wire gauge of 16AWG. The connector is available in bulk packaging with 500 pieces per package. It is not RoHS compliant and does not meet Reach SVHC requirements.
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
Souriau SM16ML11TK6 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Copper Alloy, Tin |
| Contact Plating | Tin |
| Contact Type | Pin |
| Current Rating | 13A |
| Gender | Male |
| Length | 28mm |
| Material | Copper Alloy |
| Mount | Cable |
| Package Quantity | 500 |
| Packaging | Bulk |
| Plating | Tin |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | UTS |
| Termination | Crimp |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Not Compliant |
Datasheet
Souriau SM16ML11TK6 Datasheet
Download the complete datasheet for Souriau SM16ML11TK6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

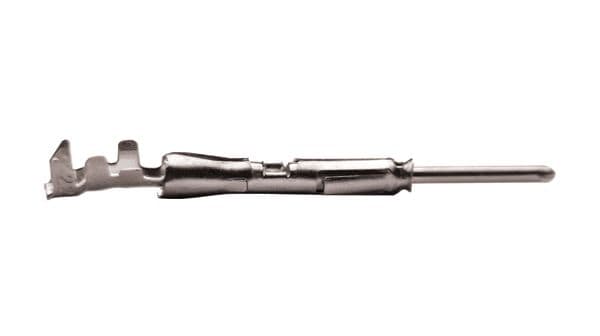

Product Images
