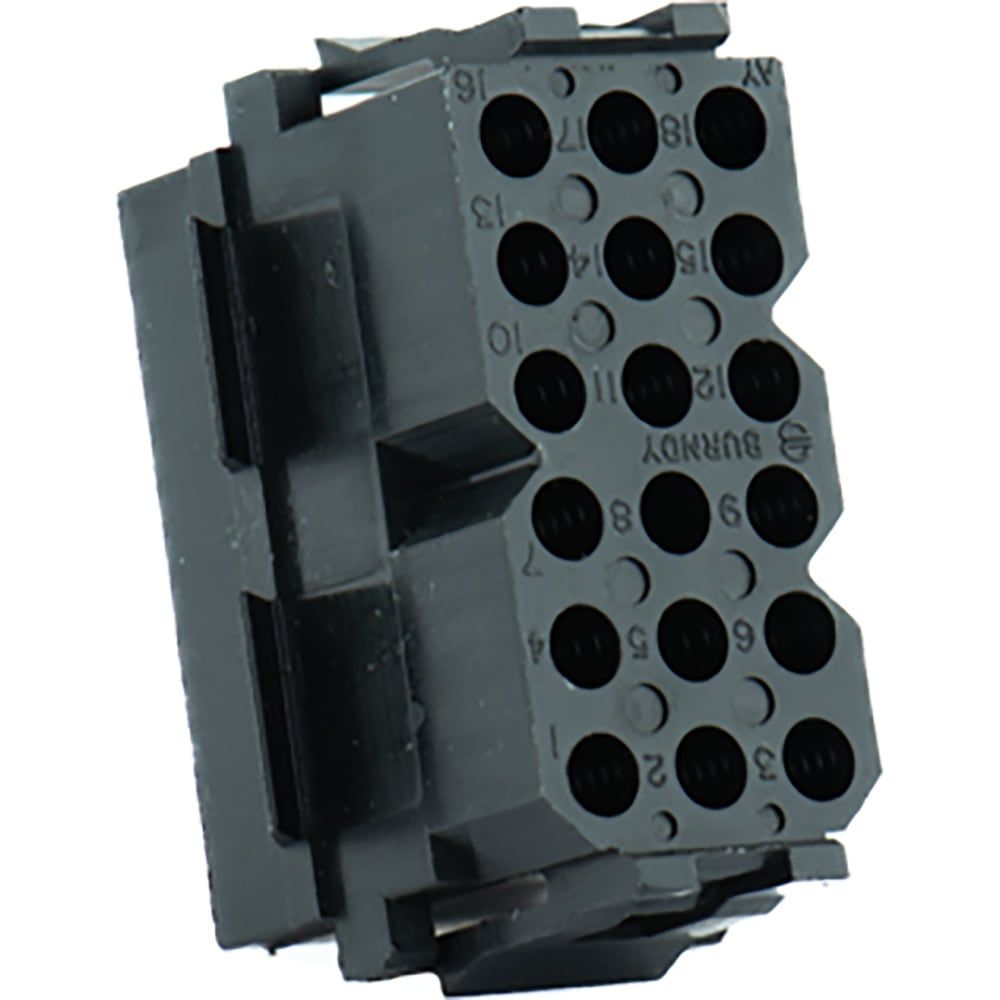

18-position straight rectangular connector housing for crimp termination, featuring 3 rows with 0.2-inch pitch and row spacing. Constructed with a plastic shell, it accepts male or female copper alloy contacts with gold plating, rated for 5A current and 2kV voltage. Designed for panel mounting with a snap-in feature, this receptacle operates from -55°C to 105°C.
Voltage Rating2kV
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Souriau SMS18R1 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Style | Crimp |
| Contact Type | Male or Female |
| Current Rating | 5A |
| Depth | 25mm |
| Gender | Receptacle |
| Height | 40.6mm |
| Lead Free | Lead Free |
| Length | 40.6mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Panel, Snap in |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Pitch | 0.2inch |
| Reach SVHC Compliant | No |
| Row Spacing | 0.2inch |
| Series | SMS |
| Shell Material | Plastic |
| Termination | Crimp |
| Voltage Rating | 2kV |
| Weight | 9.3g |
| Width | 16.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Souriau SMS18R1 Datasheet
Download the complete datasheet for Souriau SMS18R1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
