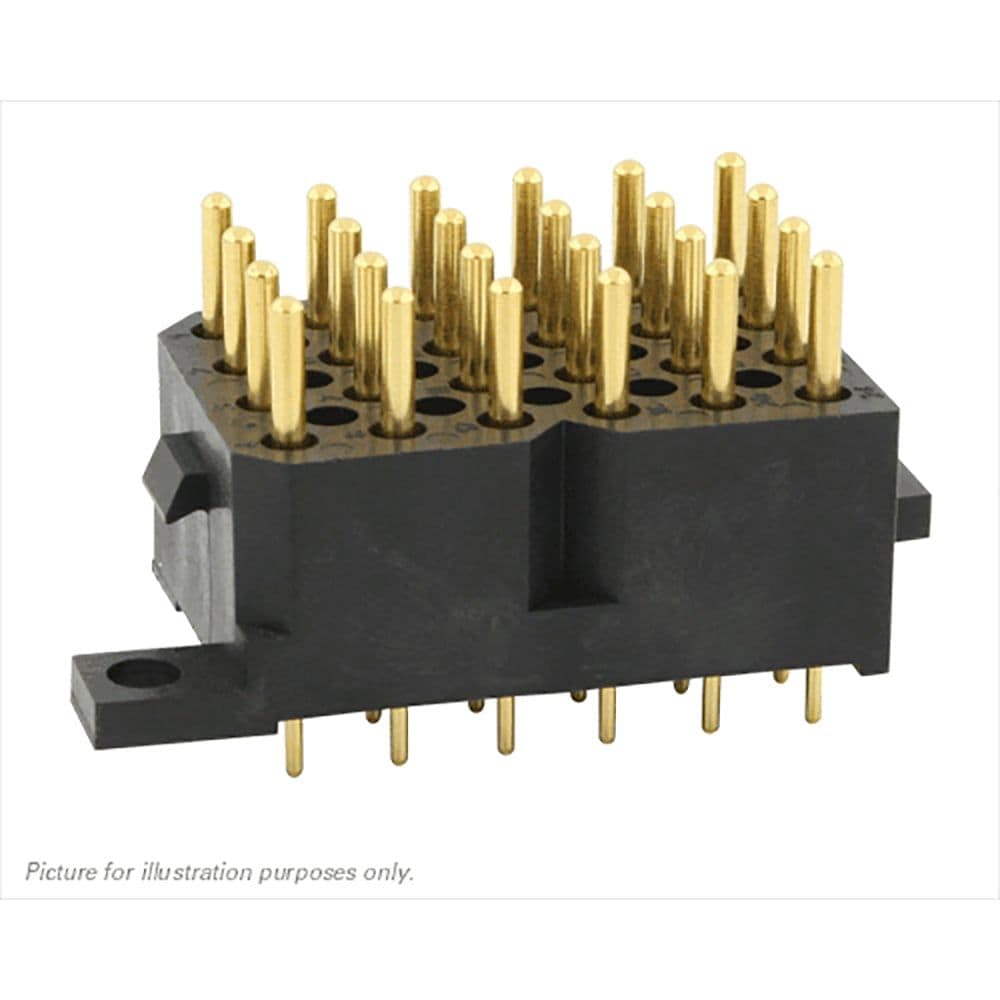

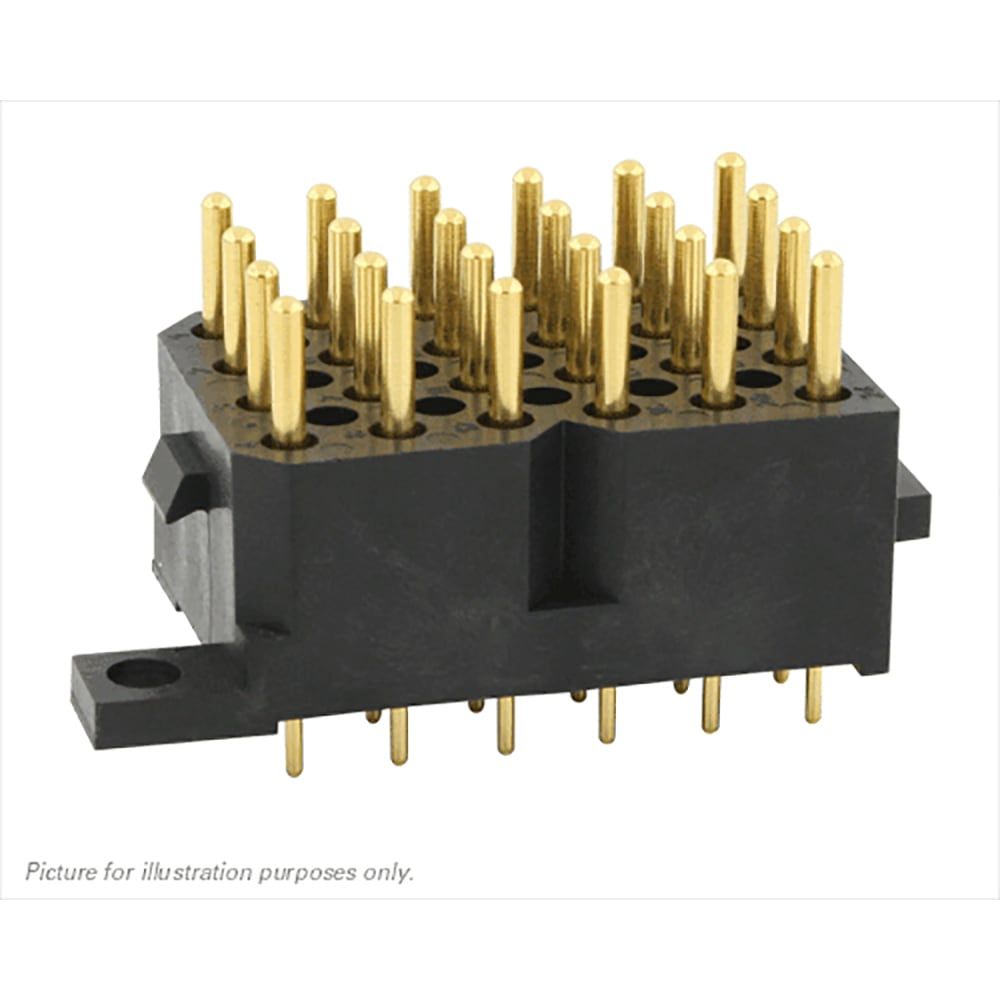

24-position male pin receptacle with 6 rows, featuring a 5.08mm pitch and 0.28-inch mating length. Contacts are copper alloy with gold plating, rated for 5A current and 2kV voltage. Black housing constructed from UL94 V-0 rated material, operating between -55°C and 125°C. Through-hole termination for secure mounting.
Voltage Rating2kV
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Souriau SMS24GE4 technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Mating Length | 0.28inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 5A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 6 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 0.2inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.2inch |
| Series | SMS |
| Termination | Through Hole |
| Voltage Rating | 2kV |
Compliance
| RoHS | Compliant |
