Four-position, straight, male wire housing for crimp termination. Features gold-plated male or female contacts with a 5A current rating and 2kV operating supply voltage. Constructed from Nylon material with a molded package, this free-hanging connector offers a -55°C to 105°C operating temperature range and UL94 V-2 flammability rating.
PackageMolded
Current Rating5A
MountingFree Hanging
Quick Jump:
Technical Specifications
Souriau SMS4PDH1 technical specifications.
General
| Package/Case | Molded |
| Contact Gender | Male |
| Contact Material | Gold |
| Contact Type | Male or Female |
| Current Rating | 5A |
| Depth | 57.1mm |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 74.4mm |
| Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Supply Voltage | 2kV |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Pitch | 0.2inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | SMS |
| Termination | Crimp |
| Width | 23.7mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Souriau SMS4PDH1 Datasheet
Download the complete datasheet for Souriau SMS4PDH1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

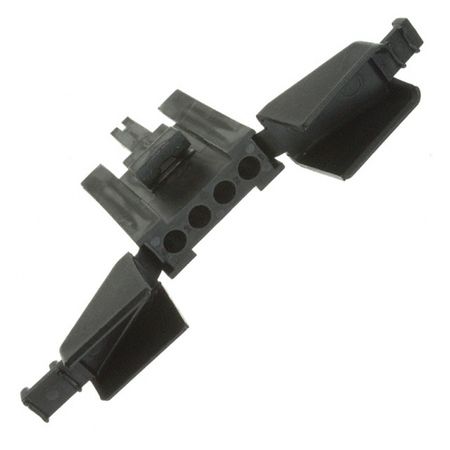

Product Images
