Six-position, two-row receptacle connector for panel mounting with straight orientation. Features gold-plated copper alloy contacts rated for 5A current and 2kV voltage. Constructed from UL94 V-2 rated Nylon material, operating between -55°C and 105°C. Termination is Crimp, with a 2.54mm pitch and row spacing.
Voltage Rating2kV
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Souriau SMS6R1 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Male or Female |
| Current Rating | 5A |
| Depth | 25mm |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Height | 25mm |
| Lead Free | Lead Free |
| Length | 20.3mm |
| Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Panel, Snap in |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| Row Spacing | 2.54mm |
| Series | SMS |
| Termination | Crimp |
| Voltage Rating | 2kV |
| Width | 16.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Souriau SMS6R1 Datasheet
Download the complete datasheet for Souriau SMS6R1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

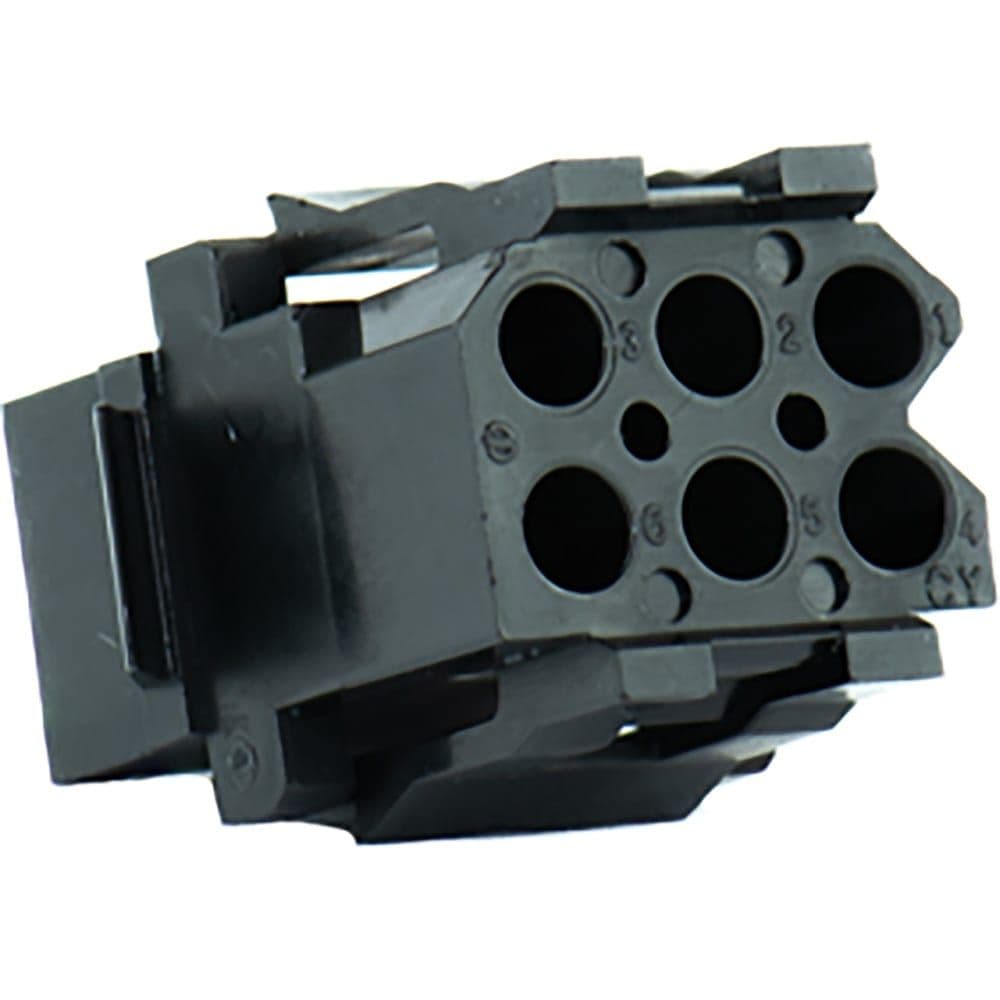

Product Images
