12-position, straight, male receptacle circular connector with a zinc alloy body plated in nickel. Features gold-plated crimp and solder contacts, a 13A current rating, and a 250V voltage rating. Designed for panel mounting with flanges, this shielded connector offers IP68, waterproof, water-resistant, and dust-tight ratings. Operating temperature range is -40°C to 105°C, with a UL94 V-0 flammability rating.
Voltage Rating250V
Current Rating13A
MountingPanel, Flanges
Quick Jump:
Technical Specifications
Souriau UT001412PH6 technical specifications.
General
| Body Material | Zinc |
| Body Plating | Nickel |
| Contact Gender | Male |
| Contact Material | Gold |
| Contact Type | Crimp and Solder |
| Current Rating | 13A |
| Depth | 28.6mm |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Length | 31.7mm |
| Material | Zinc |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Flanges |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Plating | Nickel |
| Radiation Hardening | No |
| Ratings | IP68, Waterproof, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| Series | UT0 |
| Shell Material | ZINC ALLOY |
| Shell Plating | Nickel |
| Shell Size | 14 |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Souriau UT001412PH6 Datasheet
Download the complete datasheet for Souriau UT001412PH6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

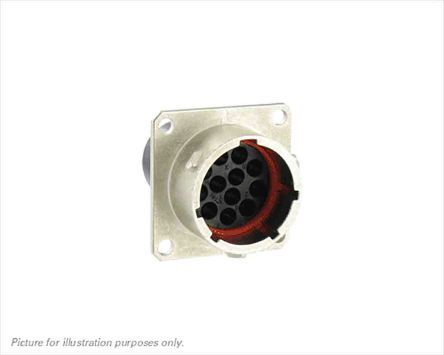

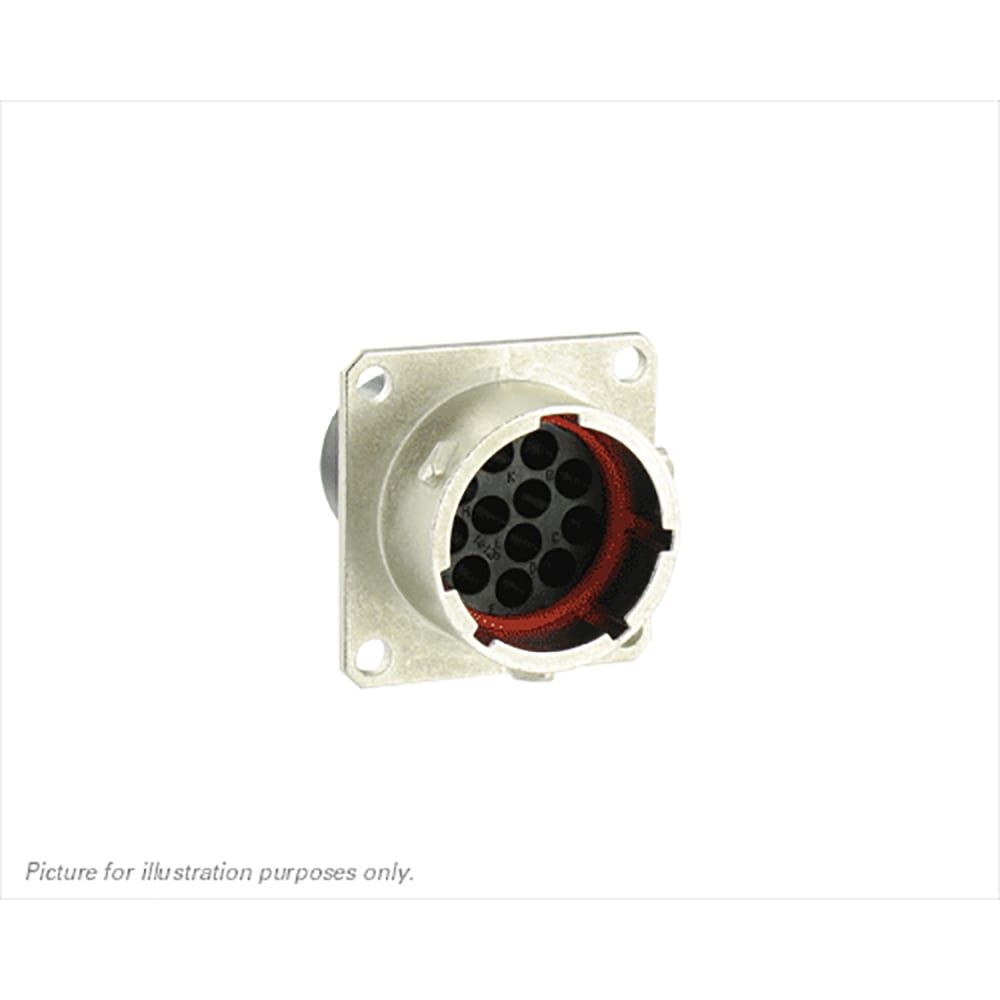

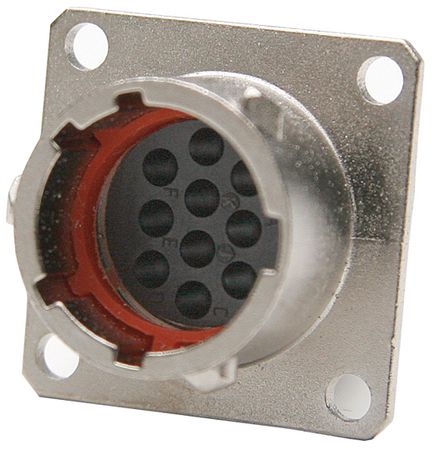

Product Images
