Technical Specifications
Spansion S29GL064N90TFI060 technical specifications.
General
| Access Time | 90ns |
| Access Time-Max | 90ns |
| Package/Case | TSOP |
| Data Bus Width | 8b |
| Density | 64Mb |
| Height | 1.05mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 18.5mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64Mb |
| Memory Type | NOR, , FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Package Quantity | 96 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GL-N |
| Supply Current | 50mA |
| Sync/Async | Asynchronous |
| Width | 14.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Spansion S29GL064N90TFI060 Datasheet
Download the complete datasheet for Spansion S29GL064N90TFI060 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

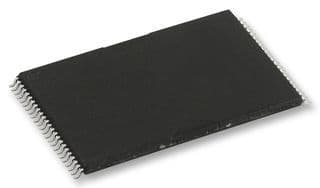

Product Images
