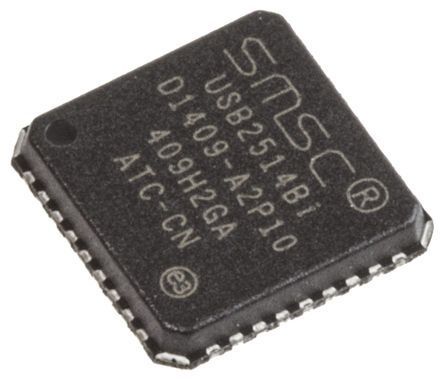

This device is a 4-port USB 2.0 hi-speed hub controller for embedded USB applications. It supports low-speed, full-speed, and hi-speed downstream devices and uses a multi-transaction-translator architecture with one transaction translator per port. The hub operates from a single 3.3 V supply with internal 1.2 V core regulation, integrates USB termination and pull-up and pull-down resistors, and supports self-powered or bus-powered operation. It provides configurable features including PortMap, PortSwap, PHYBoost, SMBus or I2C EEPROM configuration, and USB Battery Charging Revision 1.1 support for charging downstream ports. The USB2514Bi variant is specified for the industrial temperature range from -40°C to +85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Standard Microsystems USB2514BI-AEZG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Data Rate | 480Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Standard Microsystems USB2514BI-AEZG to view detailed technical specifications.
