Unidirectional TVS diode with a 15.3V reverse standoff voltage and 17.1V minimum breakdown voltage. Features a 32.5V clamping voltage and 1.5kW peak pulse power dissipation. This general-purpose rectifier is housed in a DO-201 package with through-hole mounting and a capacitance of 4.3nF. Operating temperature range is -65°C to 175°C, with a low leakage current of 1µA.
PackageDO-201
Capacitance4.3nF
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics 1.5KE18A technical specifications.
General
Capacitance
4.3nF
Package/Case
DO-201
Clamping Voltage
32.5V
Clamping Voltage-Max
25.2V
Contact Plating
Tin, Matte
Diameter
5.3mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
No
Height
5.3mm
Lead Free
Lead Free
Leakage Current
1uA
Length
9.5mm
Max Breakdown Voltage
18.9V
Min Breakdown Voltage
17.1V
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Reverse Leakage Current
1uA
Max Surge Current
1mA
Mount
Through Hole
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
15.3V
Package Quantity
600
Packaging
Tape and Reel
Peak Pulse Current
308A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
17.1V
Reverse Standoff Voltage
15.3V
RoHS Compliant
Yes
Series
1.5KE, TRANSIL™
Termination
Through Hole
DC Rated Voltage
18V
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics 1.5KE18A Datasheet
Download the complete datasheet for Stmicroelectronics 1.5KE18A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

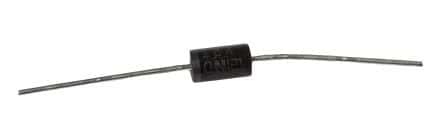

Product Images
