Technical Specifications
Stmicroelectronics 74AC04B technical specifications.
General
Package/Case
PDIP
High Level Output Current
-24mA
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Number of Circuits
6
Operating Supply Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
8ns
RoHS Compliant
Yes
Series
74AC04
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics 74AC04B Datasheet
Download the complete datasheet for Stmicroelectronics 74AC04B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

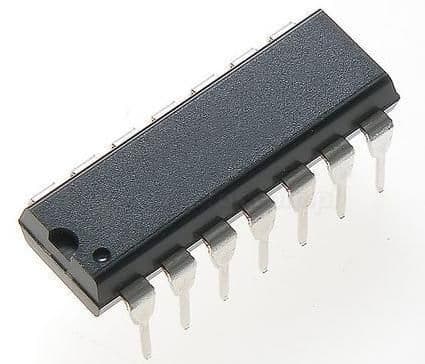

Product Images
