8-bit D-type latch with true output, featuring CMOS technology and a 3-state output. This buffer/line driver operates from a 2V to 6V supply, offering independent circuits and a maximum operating temperature of 125°C. It supports a high level output current of -24mA and a low level output current of 24mA, with a propagation delay of 10ns. Packaged in a 20-pin SOP for surface mounting, this component is RoHS compliant and supplied on tape and reel.
PackageSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics 74AC573MTR technical specifications.
General
Package/Case
SOP
High Level Output Current
-24mA
Independent Circuits
1
Lead Free
Contains Lead
Logic Function
D-Type, Latch
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Circuits
8
Number of Elements
1
Number of Input Lines
8
Number of Output Lines
3
Output Current
24mA
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
10ns
RoHS Compliant
Yes
Series
74AC
Technology
CMOS
Turn-On Delay Time
4.5ns
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics 74AC573MTR Datasheet
Download the complete datasheet for Stmicroelectronics 74AC573MTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

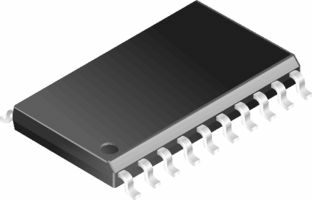

Product Images
