Dual positive edge-triggered D flip-flop with complementary outputs. Features a 300MHz operating frequency and 14ns propagation delay. Supports a 2V to 6V supply voltage range with ±24mA high/low level output current. Designed for through-hole mounting in a 14-pin DIP package, operating from -55°C to 125°C.
Frequency300MHz
PackageDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics 74AC74B technical specifications.
General
Package/Case
DIP
Clock Edge Trigger Type
Positive Edge
Frequency
300MHz
High Level Output Current
24mA
Input Type
SINGLE-ENDED
Lead Free
Contains Lead
Logic Function
D-Type, Flip-Flop
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
1
Number of Bits per Element
1
Number of Circuits
2
Number of Elements
2
Number of Input Lines
1
Number of Output Lines
1
Package Quantity
25
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
14ns
RoHS Compliant
Yes
Series
74AC
Turn-On Delay Time
5ns
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics 74AC74B Datasheet
Download the complete datasheet for Stmicroelectronics 74AC74B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

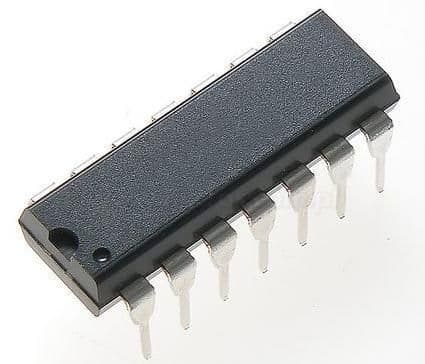

Product Images
