Positive edge-triggered D-type flip-flop IC featuring 8 independent D-type flip-flops, each with a single-ended input and a non-inverting true output. Operates with a maximum frequency of 190MHz and a propagation delay of 8.5ns. Supports a supply voltage range of 4.5V to 5.5V, with high and low level output current capabilities of 24mA. Packaged in a 20-pin PDIP through-hole mount configuration, suitable for operation between -55°C and 125°C.
Frequency190MHz
PackageDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics 74ACT273B technical specifications.
General
Package/Case
DIP
Clock Edge Trigger Type
Positive Edge
Frequency
190MHz
High Level Output Current
24mA
Input Type
SINGLE-ENDED
Lead Free
Lead Free
Logic Function
D-Type, Flip-Flop
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Bits per Element
8
Number of Circuits
8
Number of Elements
1
Number of Input Lines
8
Number of Output Lines
8
Package Quantity
20
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
8.5ns
RoHS Compliant
No
Series
74ACT
Turn-On Delay Time
4ns
Compliance
RoHS
Not Compliant
Datasheet
Stmicroelectronics 74ACT273B Datasheet
Download the complete datasheet for Stmicroelectronics 74ACT273B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

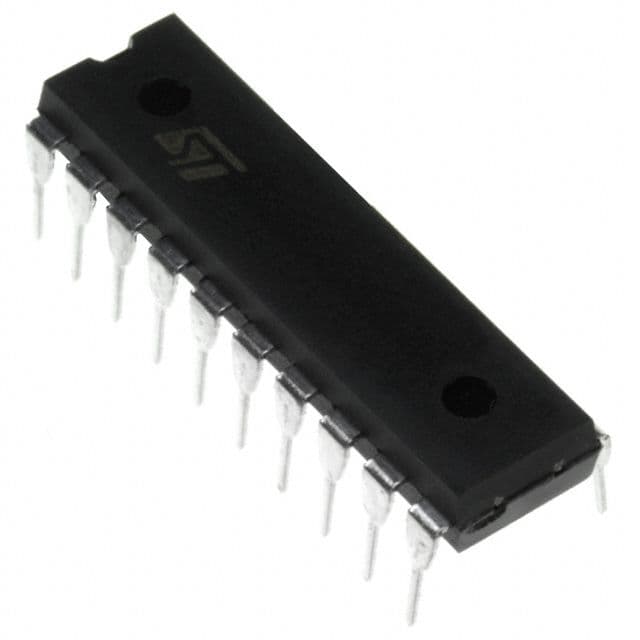

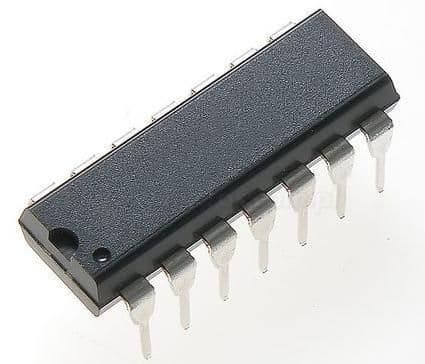

Product Images
