Package0201
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics BAT30F4 technical specifications.
General
Average Rectified Current
300mA
Case Code (Imperial)
0201
Case Code (Metric)
0603
Package/Case
0201
Forward Current
300mA
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
4A
Max Operating Temperature
85°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Voltage (DC)
30V
Mount
Surface Mount
Packaging
Cut Tape
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BAT30F4 Datasheet
Download the complete datasheet for Stmicroelectronics BAT30F4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

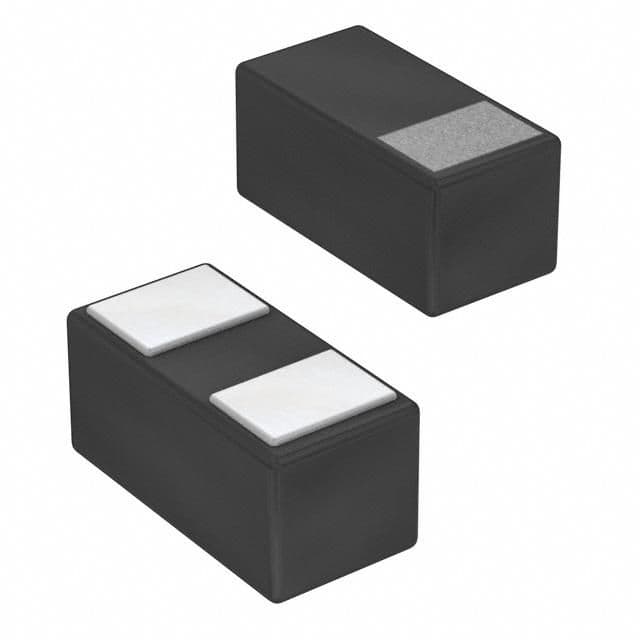

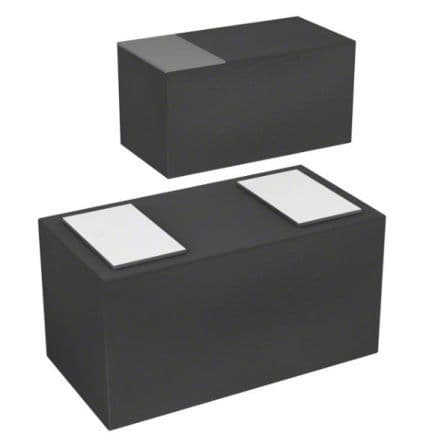

Product Images
