PackageSOT-323
Capacitance3uF
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics BAT41SWFILM technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 3uF |
| Package/Case | SOT-323 |
| Contact Plating | Tin, Matte |
| Current Rating | 200mA |
| Forward Current | 200mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 20uA |
| Max Reverse Leakage Current | 100nA |
| Max Reverse Voltage (DC) | 100V |
| Max Surge Current | 1A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 1A |
| RoHS Compliant | Yes |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BAT41SWFILM Datasheet
Download the complete datasheet for Stmicroelectronics BAT41SWFILM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

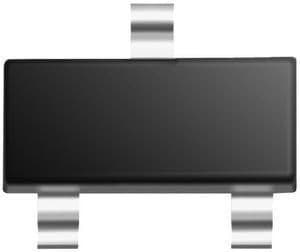

Product Images
