Current Rating350mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics BAT48JFILM technical specifications.
General
| Average Rectified Current | 350mA |
| Current Rating | 350mA |
| Forward Current | 350mA |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 2A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 25uA |
| Max Reverse Leakage Current | 25uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Output Current | 350mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BAT48JFILM Datasheet
Download the complete datasheet for Stmicroelectronics BAT48JFILM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

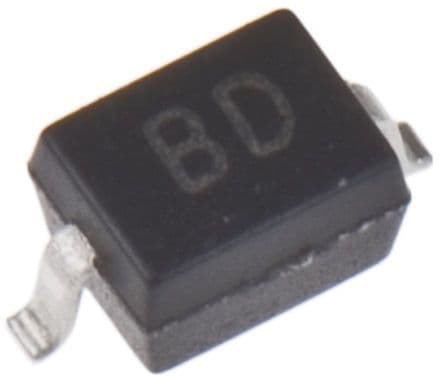

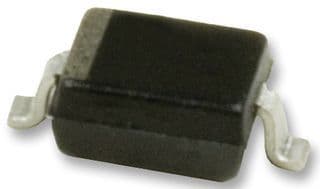

Product Images
