Current Rating350mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics BAT48ZFILM technical specifications.
General
Average Rectified Current
350mA
Current Rating
350mA
Forward Current
350mA
Height
1.35mm
Lead Free
Lead Free
Length
2.85mm
Max Forward Surge Current (Ifsm)
2A
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
25uA
Max Reverse Voltage (DC)
40V
Mount
Surface Mount
Output Current
350mA
Package Quantity
3000
Packaging
Cut Tape
Polarity
Standard
RoHS Compliant
Yes
DC Rated Voltage
40V
Weight
0.001058oz
Width
1.7mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BAT48ZFILM Datasheet
Download the complete datasheet for Stmicroelectronics BAT48ZFILM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

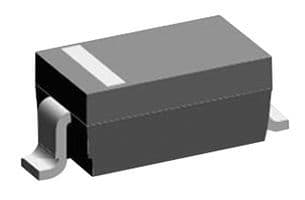

Product Images
