The BAT54ZFILM is a surface mount general purpose rectifier diode with a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It has a maximum reverse voltage of 40V and a maximum reverse current of 100uA. The diode has a maximum surge current of 1A and a reverse recovery time of 5ns. It is lead free and RoHS compliant. The diode is packaged in a R-PDSO-G2 package and is available on tape and reel.
Capacitance7pF
Current Rating300mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics BAT54ZFILM technical specifications.
General
| Average Rectified Current | 300mA |
| Capacitance | 7pF |
| Contact Plating | Tin, Matte |
| Current Rating | 300mA |
| Forward Current | 300mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 100uA |
| Max Reverse Leakage Current | 1uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 1A |
| Mount | Surface Mount |
| Output Current | 300mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 1A |
| Polarity | Standard |
| Reverse Recovery Time | 5ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BAT54ZFILM Datasheet
Download the complete datasheet for Stmicroelectronics BAT54ZFILM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

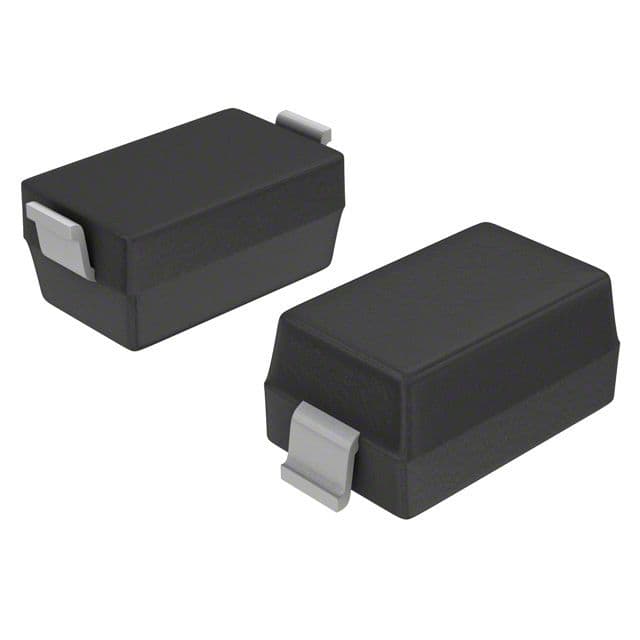

Product Images
