PackageTO-220AB
Current Rating25A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics BTB24-800BRG technical specifications.
General
Package/Case
TO-220AB
Contact Plating
Tin, Matte
Current Rating
25A
Height
15.9mm
Hold Current
80mA
Lead Free
Lead Free
Length
10.4mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
800V
Mount
Through Hole
Package Quantity
250
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
25A
RoHS Compliant
Yes
DC Rated Voltage
800V
Weight
0.211644oz
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BTB24-800BRG Datasheet
Download the complete datasheet for Stmicroelectronics BTB24-800BRG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

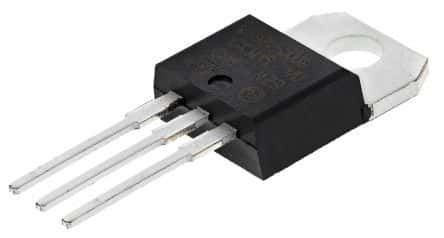

Product Images
