PackageDO-15
Current Rating1.5A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics BYW100-200RL technical specifications.
General
| Average Rectified Current | 1.5A |
| Package/Case | DO-15 |
| Current Rating | 1.5A |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 10uA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 50A |
| Mount | Through Hole |
| Output Current | 1.5A |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 50A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reverse Recovery Time | 35ns |
| Reverse Voltage | 200V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics BYW100-200RL Datasheet
Download the complete datasheet for Stmicroelectronics BYW100-200RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

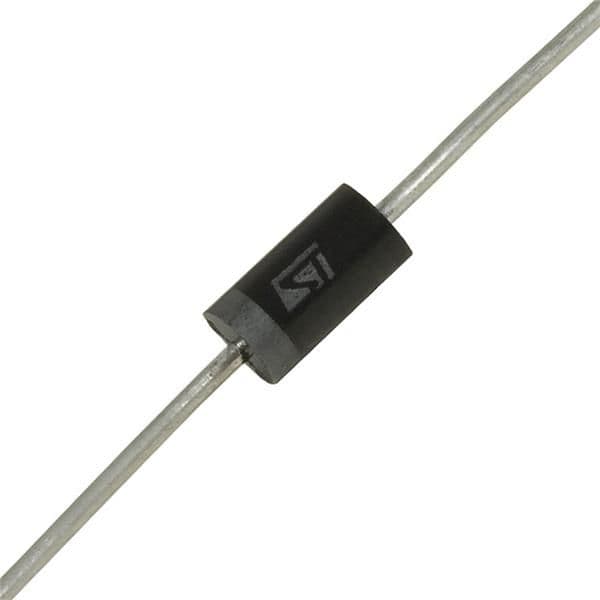

Product Images
