Bidirectional Transient Voltage Suppressor (TVS) diode in a DO-15 package, offering 400W peak pulse power dissipation. Features a 376V reverse standoff voltage and a 776V clamping voltage. With a 418V breakdown voltage and 1uA leakage current, this component is suitable for through-hole mounting. Operating temperature range is -65°C to 175°C, with lead-free and RoHS compliance.
PackageDO-15
Capacitance70pF
MountingThrough Hole
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics BZW04-376B technical specifications.
General
Capacitance
70pF
Package/Case
DO-15
Clamping Voltage
776V
Contact Plating
Tin, Matte
Diameter
3.53mm
Diode Type
ZENER
Direction
Bidirectional
ESD Protection
No
Height
3.53mm
Lead Free
Lead Free
Leakage Current
1uA
Length
6.75mm
Max Breakdown Voltage
418V
Min Breakdown Voltage
418V
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Power Dissipation
400W
Max Reverse Leakage Current
1uA
Max Surge Current
800mA
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Elements
1
Operating Supply Voltage
376V
Package Quantity
1000
Packaging
Cut Tape
Peak Pulse Current
3A
Peak Pulse Power
400W
Polarity
Bidirectional
Power Dissipation
1.7W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
418V
Reverse Standoff Voltage
376V
RoHS Compliant
Yes
Series
BZW04, TRANSIL™
DC Rated Voltage
376V
Width
3.53mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BZW04-376B Datasheet
Download the complete datasheet for Stmicroelectronics BZW04-376B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

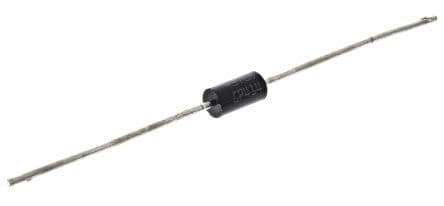

Product Images
