Bidirectional Transient Voltage Suppressor (TVS) diode in a DO-15 package, offering 400W peak pulse power and 174A peak pulse current. Features a 5.8V reverse standoff voltage, 6.45V reverse breakdown voltage, and 13.4V clamping voltage. Operates across a wide temperature range of -65°C to 175°C with a low leakage current of 1mA. This through-hole component has a capacitance of 3.5nF and is RoHS compliant.
PackageDO-15
Capacitance3.5nF
MountingThrough Hole
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics BZW04-5V8B technical specifications.
General
Capacitance
3.5nF
Package/Case
DO-15
Clamping Voltage
13.4V
Contact Plating
Tin, Matte
Diameter
3.53mm
Diode Type
ZENER
Direction
Bidirectional
ESD Protection
No
Height
3.53mm
Lead Free
Lead Free
Leakage Current
1mA
Length
6.75mm
Max Breakdown Voltage
6.45V
Min Breakdown Voltage
6.45V
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Reverse Leakage Current
1mA
Max Surge Current
174A
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
5.8V
Package Quantity
1
Packaging
Ammo Pack
Peak Pulse Current
174A
Peak Pulse Power
400W
Polarity
Bidirectional
Power Dissipation
1.7W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6.45V
Reverse Standoff Voltage
5.8V
RoHS Compliant
Yes
Series
BZW04, TRANSIL™
Termination
Axial
DC Rated Voltage
5.8V
Weight
0.01411oz
Width
3.53mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics BZW04-5V8B Datasheet
Download the complete datasheet for Stmicroelectronics BZW04-5V8B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

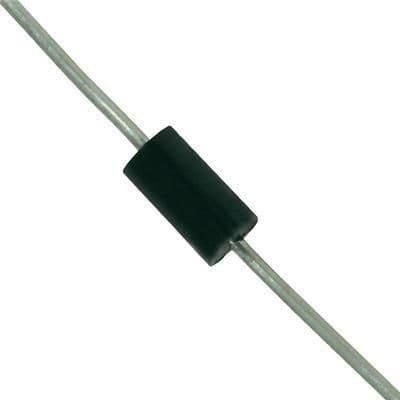

Product Images
