3-line EMI/RFI filter and ESD protection for data lines, featuring a QFN package for surface mount applications. Offers 20pF capacitance per line, 200nA current rating, and robust ESD protection. Operates across a -40°C to 85°C temperature range, with dimensions of 0.067" L x 0.059" W x 0.024" H. This lead-free, RoHS-compliant component is supplied on tape and reel.
PackageQFN
Capacitance20pF
Current Rating200nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics EMIF03-SIM02M8 technical specifications.
General
Capacitance
20pF
Package/Case
QFN
Current Rating
200nA
ESD Protection
Yes
Height
0.024inch
Lead Free
Lead Free
Length
0.067inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Channels
3
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
IPAD™
Termination
SMD/SMT
Width
0.059inch
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics EMIF03-SIM02M8 Datasheet
Download the complete datasheet for Stmicroelectronics EMIF03-SIM02M8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

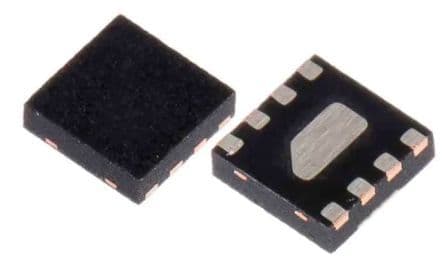

Product Images
