Surface mount transient voltage suppressor (TVS) array for data protection. Features 5 unidirectional ZENER diode elements with a low capacitance of 50pF, designed for ESD protection. Offers a breakdown voltage range of 6.1V to 7.2V and a peak pulse current capability of 15A. Operates within a temperature range of -40°C to 125°C, with a low leakage current of 1µA. Packaged in SOT-323, this RoHS compliant component is ideal for protecting sensitive electronic circuits.
PackageSOT-323
Capacitance50pF
Voltage Rating3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ESDA6V1-5W6 technical specifications.
General
Capacitance
50pF
Package/Case
SOT-323
Depth
1.35mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Height
1.1mm
Lead Free
Lead Free
Leakage Current
1uA
Length
2.2mm
Max Breakdown Voltage
7.2V
Min Breakdown Voltage
6.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
100W
Max Reverse Leakage Current
1uA
Mount
Surface Mount
Number of Channels
5
Number of Elements
5
Number of Unidirectional Channels
5
Operating Supply Voltage
1.25V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
15A
Peak Pulse Power
100W
Polarity
Unidirectional
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6.1V
Reverse Standoff Voltage
3V
RoHS Compliant
Yes
Series
ESDA, TRANSIL™
Termination
SMD/SMT
DC Rated Voltage
6.1V
Width
2.4mm
Working Voltage
3V
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ESDA6V1-5W6 Datasheet
Download the complete datasheet for Stmicroelectronics ESDA6V1-5W6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

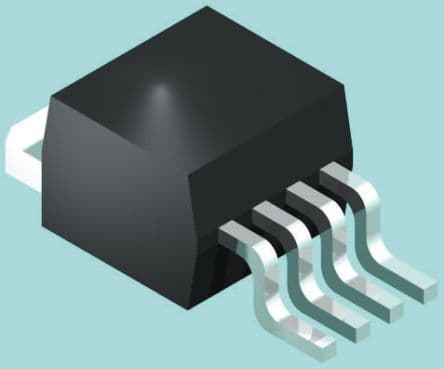

Product Images
