Stmicroelectronics
IRF620
6A, 200V, 0.8ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN
PackageTO-220
Current Rating6A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics IRF620 technical specifications.
General
Package/Case
TO-220
Continuous Drain Current (ID)
6A
Current Rating
6A
Drain to Source Breakdown Voltage
200V
Drain to Source Resistance
100mR
Drain to Source Voltage (Vdss)
200V
Gate to Source Voltage (Vgs)
20V
Input Capacitance
350pF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
70W
Mount
Through Hole
Package Quantity
1000
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
70W
Rds On Max
800mR
RoHS Compliant
Yes
Series
PowerMESH™ II
Threshold Voltage
4V
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics IRF620 Datasheet
Download the complete datasheet for Stmicroelectronics IRF620 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

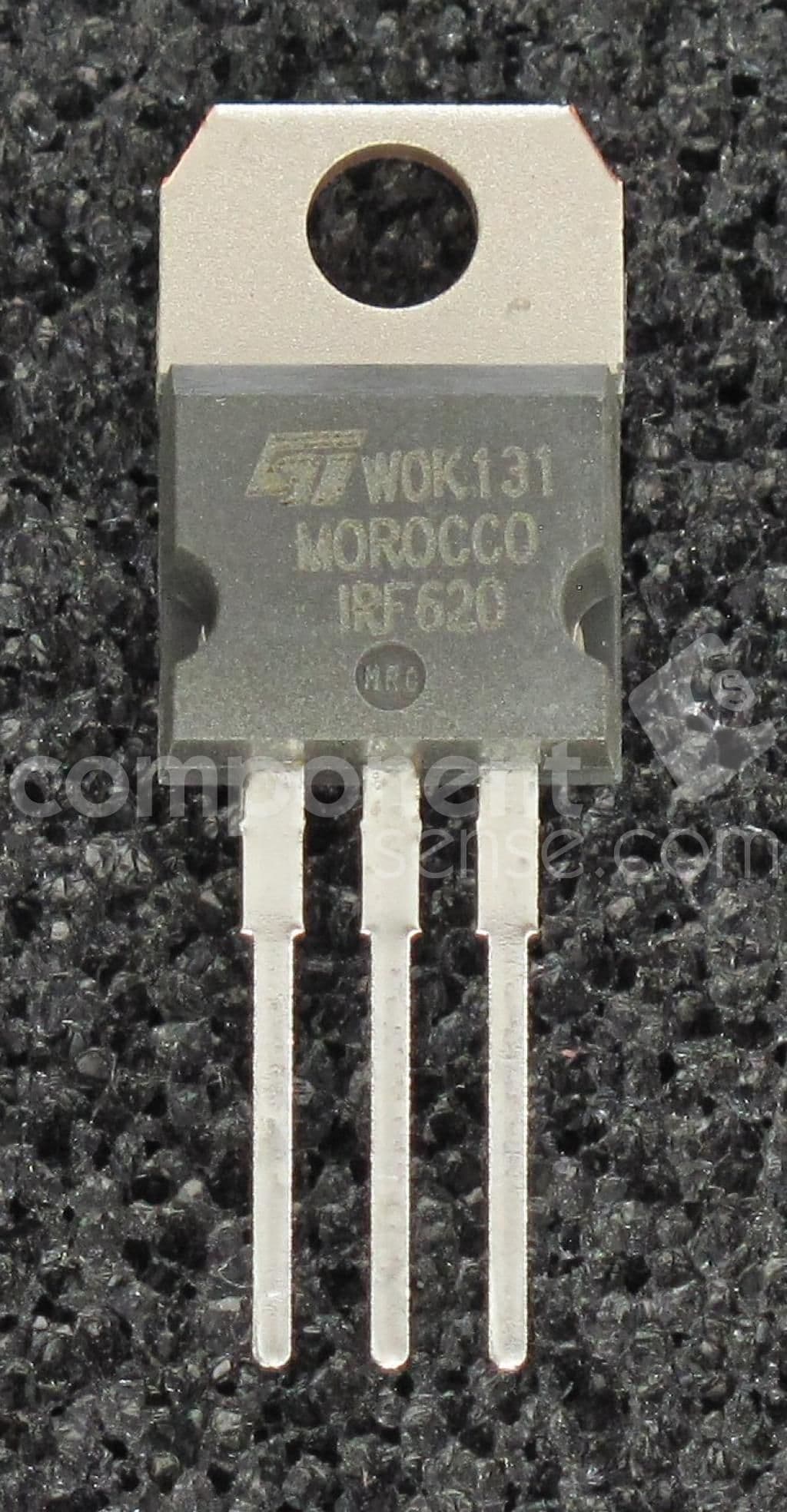

Product Images
