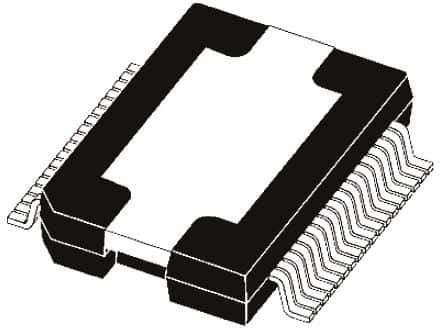

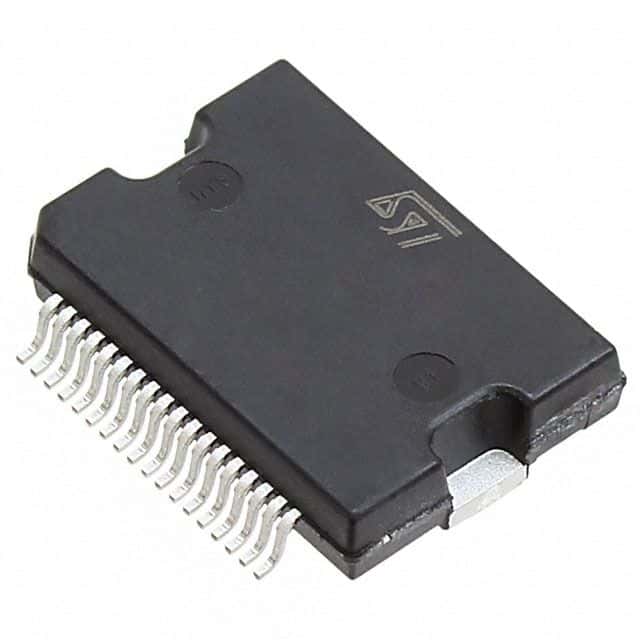

Galvanic isolated octal high-side smart power solid-state relay featuring 8 outputs, each capable of delivering up to 700mA with a maximum output current of 1.4A. This surface-mount component operates with a DC input type and a parallel interface, supporting an operating supply voltage up to 45V and a maximum input voltage of 36V. It offers over-temperature fault protection and a low on-state resistance of 120mR. The device operates across a temperature range of -40°C to 125°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics ISO8200B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current | 700mA |
| Fault Protection | Over Temperature |
| Height | 3.5mm |
| Input Type | DC |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 16mm |
| Max Input Voltage | 36V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 700mA |
| Mount | Surface Mount |
| Number of Outputs | 8 |
| On-State Resistance | 120mR |
| Operating Supply Voltage | 45V |
| Output Configuration | High Side |
| Output Current | 1.4A |
| Package Quantity | 31 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Gull Wing |
| Voltage | 36V |
| Width | 11.1mm |
| RoHS | Compliant |
