High current switching regulator, a power management IC featuring a single positive adjustable output up to 4A and 40V. Operating from a 9V to 46V input range, this component achieves up to 90% efficiency and supports a maximum output current of 4A. With a switching frequency up to 200kHz, it is housed in a through-hole package with dimensions of 19.6mm length, 5mm width, and 10.7mm height, and operates within a temperature range of -40°C to 150°C. This RoHS compliant device is supplied in rail/tube packaging.
MountingThrough Hole
Power20W
Quick Jump:
Technical Specifications
Stmicroelectronics L296P technical specifications.
General
Efficiency
90%
Height
10.7mm
Lead Free
Lead Free
Length
19.6mm
Max Input Voltage
46V
Min Input Voltage
9V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Output Voltage
40V
Min Output Voltage
5.1V
Mount
Through Hole
Number of Outputs
1
Operating Supply Voltage
46V
Output Configuration
Positive
Output Current
4A
Output Type
Adjustable
Output Voltage
40V
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
20W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
200kHz
Synchronous Rectifier
No
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L296P Datasheet
Download the complete datasheet for Stmicroelectronics L296P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

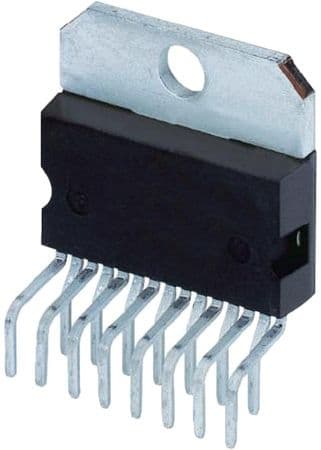

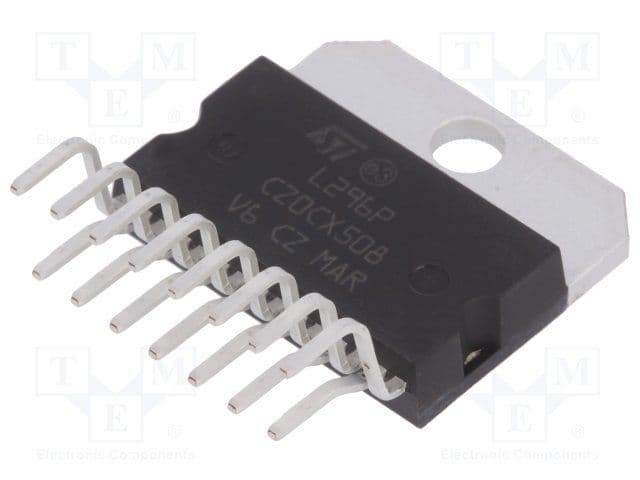

Product Images
