Stepper motor controller IC featuring a parallel interface and two outputs. Designed for stepper motor applications, it operates with a supply voltage range of 4.75V to 7V, typically 5V. The component supports a maximum output current of 10mA and a maximum power dissipation of 1W. Housed in a DIP package for through-hole mounting, it offers a wide operating temperature range from -40°C to 150°C and is RoHS compliant.
PackageDIP
Current80mA
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Stmicroelectronics L297/1 technical specifications.
General
Application(s)
STEPPER MOTOR CONTROLLER
Package/Case
DIP
Description
STEPPER MOTOR CONTROLLER
Height
2.68mm
Interface
Parallel
Lead Free
Lead Free
Length
25.4mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Supply Voltage
7V
Min Supply Voltage
4.75V
Motor Type
Stepper
Mount
Through Hole
Number of Outputs
2
Operating Supply Voltage
5V
Output Current
10mA
Output Voltage
800mV
Package Quantity
20
Packaging
Rail/Tube
Power Dissipation
1W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
L297
Supply Current
80mA
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L297/1 Datasheet
Download the complete datasheet for Stmicroelectronics L297/1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

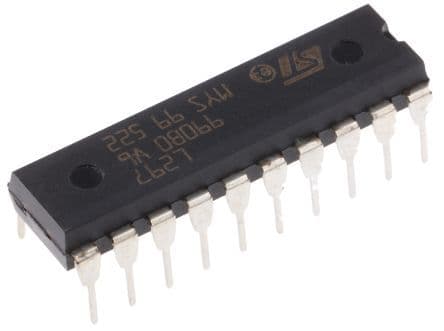

Product Images
