Dual full bridge driver IC featuring BIPOLAR technology. Offers four output channels with a maximum output current of 2A per channel and a total power dissipation of 25W. Operates with a supply voltage up to 46V and includes over-temperature fault protection. Designed for through-hole mounting with a low drain-to-source resistance of 930mR. This RoHS compliant component is lead-free and suitable for operation between -40°C and 150°C.
MountingThrough Hole
Power25W
Quick Jump:
Technical Specifications
Stmicroelectronics L298HN technical specifications.
General
Drain to Source Resistance
930mR
Fault Protection
Over Temperature
Interface
Logic
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
2A
Mount
Through Hole
Number of Channels
4
Number of Outputs
4
Operating Supply Current
13mA
Operating Supply Voltage
46V
Output Current
2A
Package Quantity
500
Packaging
Rail/Tube
Power Dissipation
25W
RoHS Compliant
Yes
Technology
BIPOLAR
Weight
0.200003oz
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L298HN Datasheet
Download the complete datasheet for Stmicroelectronics L298HN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

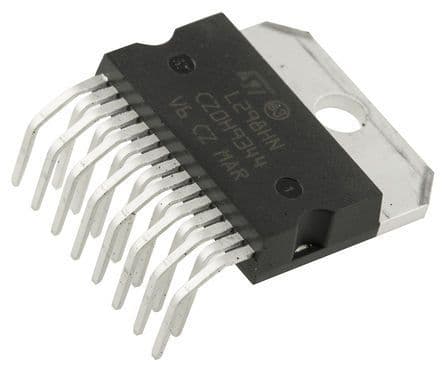

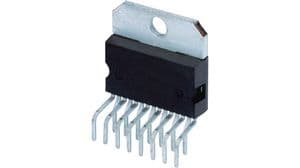

Product Images
