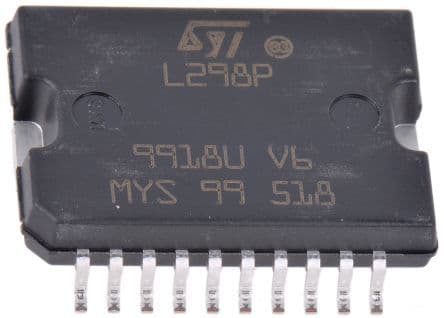

Dual full bridge motor driver IC featuring over-temperature fault protection. This surface mount component offers four output channels with a maximum output current of 2A per channel and a maximum collector current of 4A. It operates with a supply voltage range of 4.8V to 46V and supports brushed DC motors. The device is packaged in a 20-pin PowerSO format on tape and reel, with a maximum power dissipation of 25W and an operating temperature range of -40°C to 130°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L298P013TR technical specifications.
General
Fault Protection
Over Temperature
Height
3.3mm
Interface
Logic
Lead Free
Lead Free
Length
16mm
Max Collector Current
4A
Max Operating Temperature
130°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Power Dissipation
25W
Max Supply Voltage
46V
Min Supply Voltage
4.8V
Motor Type
Brushed
Mount
Surface Mount
Number of Channels
4
Number of Outputs
4
Operating Supply Current
50mA
Operating Supply Voltage
42V
Output Current
3A
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Technology
BIPOLAR
Width
11.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L298P013TR Datasheet
Download the complete datasheet for Stmicroelectronics L298P013TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
