3.5A step-down switching regulator, a power management IC featuring a maximum output current of 3.5A and a maximum output voltage of 50V. Operates with a minimum input voltage of 8V and a maximum input voltage of 55V, offering an efficiency of 90%. This surface mount component has a switching frequency up to 300kHz and a fixed/adjustable output type. Encased in an SO package, it supports a wide operating temperature range from -40°C to 150°C.
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics L4973D5.1 technical specifications.
General
Package/Case
SO
Efficiency
90%
Height
2.35mm
Lead Free
Lead Free
Length
13mm
Max Input Voltage
55V
Min Input Voltage
8V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
3.5A
Max Output Voltage
50V
Min Output Voltage
5.1V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
55V
Output Configuration
Positive
Output Current
3.5A
Output Type
Fixed, Adjustable
Output Voltage
50V
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
300kHz
Synchronous Rectifier
No
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L4973D5.1 Datasheet
Download the complete datasheet for Stmicroelectronics L4973D5.1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

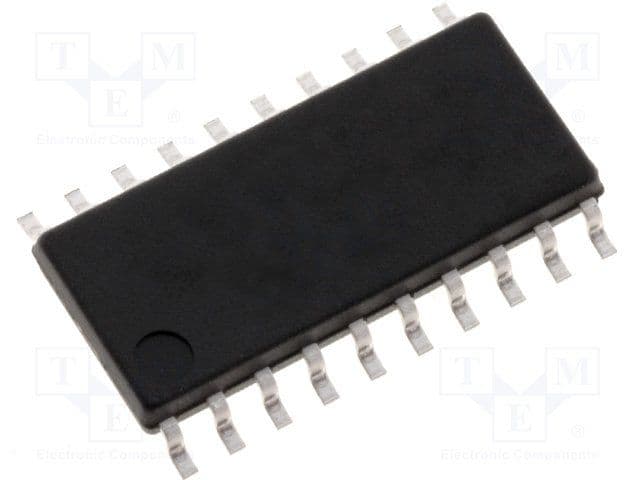

Product Images
