The L4993DTR is a single-output adjustable linear voltage regulator with an output current of 150mA. It features a dropout voltage of 200mV and an input bias current of 100uA. The device is packaged in an SO-8 package and is RoHS compliant. It operates over a temperature range of -40°C to 150°C and is suitable for automotive applications, meeting the AEC-Q100 standard.
PackageSO
MountingSurface Mount
PolarityPositive, Negative
Quick Jump:
Technical Specifications
Stmicroelectronics L4993DTR technical specifications.
General
| Accuracy | 2% |
| Package/Case | SO |
| Dropout Voltage | 200mV |
| Input Bias Current | 100uA |
| Min Current Limit | 150mA |
| Max Input Voltage | 40V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Type | Adjustable |
| Output Voltage | 6V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive, Negative |
| Quiescent Current | 180uA |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L4993DTR Datasheet
Download the complete datasheet for Stmicroelectronics L4993DTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

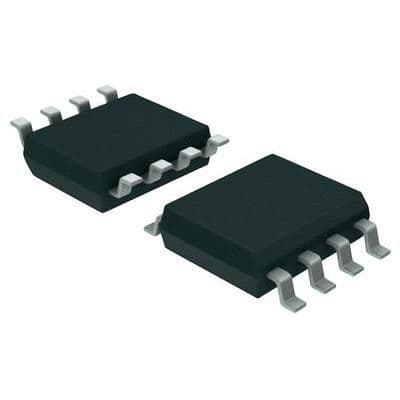

Product Images
