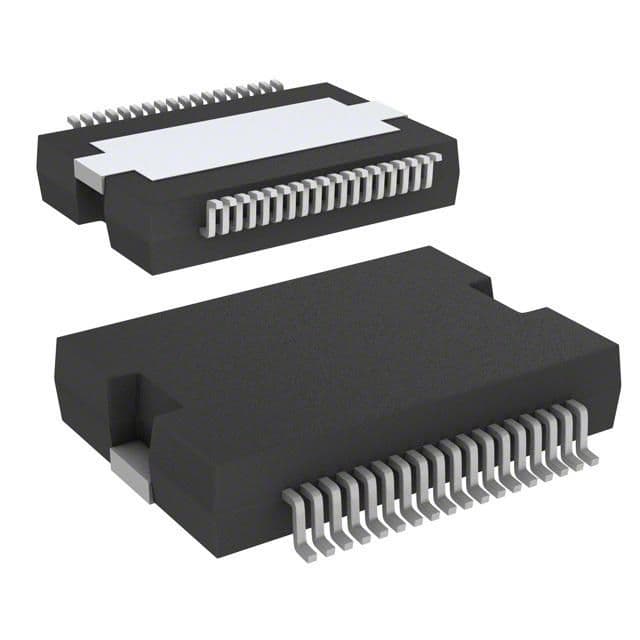

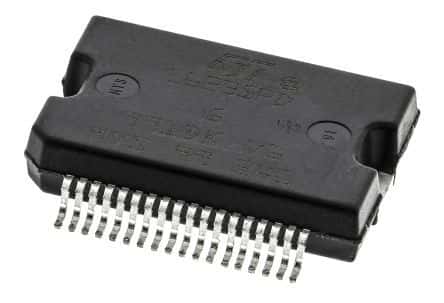

3-phase DMOS driver for brushless DC motors, featuring a 52V maximum supply voltage and 2.8A maximum output current. This integrated circuit offers three output channels and operates from a 12V to 52V supply range, with a typical operating voltage of 42V. The device boasts a low drain-to-source resistance of 300mR and a 5V reference voltage. Packaged in a lead-free SOIC for surface mounting, it operates across a temperature range of -25°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics L6235PD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Drain to Source Resistance | 300mR |
| Height | 3.3mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 16mm |
| Max Collector Current | 2.8A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 2.8A |
| Max Supply Voltage | 52V |
| Min Supply Voltage | 12V |
| Motor Type | Brushless DC (BLDC) |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Number of Outputs | 1 |
| Operating Supply Current | 6mA |
| Operating Supply Voltage | 42V |
| Output Current | 2.8A |
| Output Voltage | 52V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 5V |
| RoHS Compliant | Yes |
| Series | STSPIN L62 |
| Technology | DMOS |
| Width | 11.1mm |
| RoHS | Compliant |
