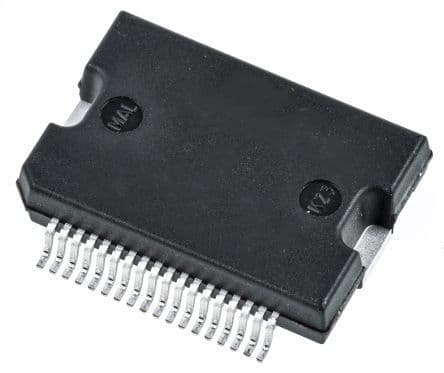

DMOS driver for 3-phase brushless DC motors, featuring a 3-channel output configuration. Operates with supply voltages from 12V to 52V, delivering up to 2.8A output current. Boasts a low drain-to-source resistance of 300mR and a parallel interface. Encased in a lead-free SOP package, this RoHS compliant component operates across a wide temperature range of -40°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics L6235PD013TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOP |
| Drain to Source Resistance | 300mR |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.8A |
| Max Supply Voltage | 52V |
| Min Supply Voltage | 12V |
| Number of Channels | 3 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 52V |
| Output Current | 2.8A |
| Output Voltage | 52V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 6mA |
| Technology | DMOS |
| RoHS | Compliant |
