6V fixed positive linear voltage regulator, TO-3 package, 2-pin configuration. Features a maximum output current of 1.5A and a dropout voltage of 2V. Operates with a maximum input voltage of 35V and a minimum input voltage of 35V, with an output voltage fixed at 6V. This through-hole mount component offers a power supply rejection ratio of 59dB and a quiescent current of 8mA, with an operating temperature range of 0°C to 125°C. RoHS compliant and supplied in bulk packaging.
PackageTO-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7806CT technical specifications.
General
Package/Case
TO-3
Dropout Voltage
2V
Height
8.7mm
Length
39.5mm
Max Input Voltage
35V
Min Input Voltage
35V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Min Output Voltage
6V
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
6V
Package Quantity
100
Packaging
Bulk
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
59dB
Quiescent Current
8mA
Radiation Hardening
No
RoHS Compliant
Yes
Width
26.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L7806CT Datasheet
Download the complete datasheet for Stmicroelectronics L7806CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

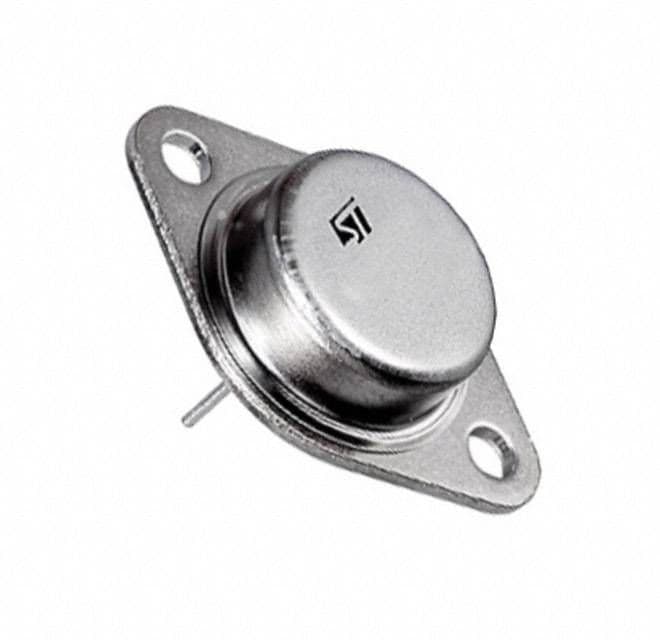

Product Images
