The L7808ABD2T is a 1.5A linear voltage regulator from Stmicroelectronics with a positive output voltage of 8V. It operates over a temperature range of -40°C to 125°C and is packaged in a RoHS compliant D2PAK-3 package. The device has a maximum input voltage of 35V and a power supply rejection ratio of 62dB. It is suitable for use in surface mount applications and has a quiescent current of 6mA.
PackageD2PAK
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7808ABD2T technical specifications.
General
| Package/Case | D2PAK |
| Lead Free | Lead Free |
| Max Input Voltage | 35V |
| Min Input Voltage | 35V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 8V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 8V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 62dB |
| Quiescent Current | 6mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7808ABD2T Datasheet
Download the complete datasheet for Stmicroelectronics L7808ABD2T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

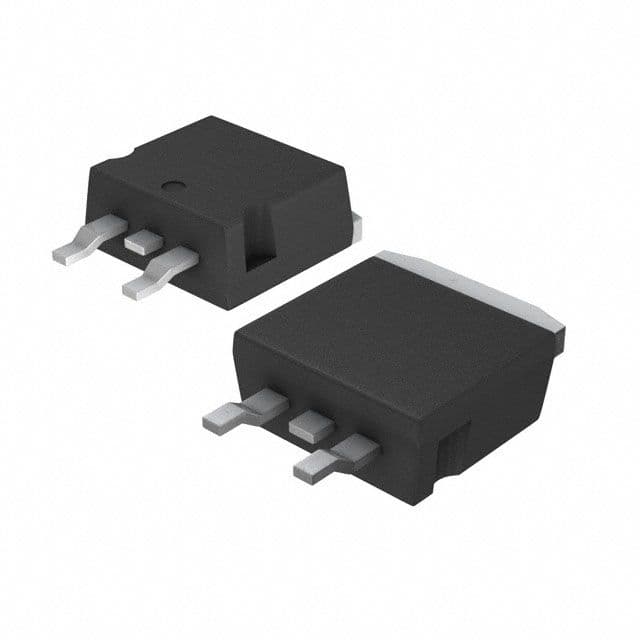

Product Images
