Positive fixed 12V voltage regulator IC with 1.5A output current. Features 2% output voltage accuracy and a 2V dropout voltage. Operates with input voltages from 14V to 35V, within a 0°C to 125°C temperature range. Through-hole mounting in a TO package. RoHS compliant.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L7812ACV technical specifications.
General
Accuracy
2%
Package/Case
TO
Dropout Voltage
2V
Height
9.15mm
Lead Free
Lead Free
Length
10.4mm
Max Input Voltage
35V
Min Input Voltage
14V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Min Output Voltage
12V
Mount
Through Hole
Nominal Output Voltage
12V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
12V
Package Quantity
1000
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
6mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
2%
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L7812ACV Datasheet
Download the complete datasheet for Stmicroelectronics L7812ACV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

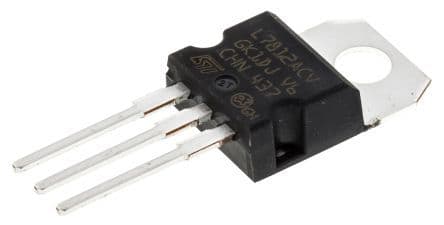

Product Images
